How To Replace Purge Valve On Air Dryer

Sunday, April 11, 2021

Build system pressure allow air dryer to purge and observe air gauge in supply reservoir. Also check the solenoid exhaust portsWhile in power-off mode no air should be bleeding from the control solenoids.

Pulse Jet Solenoid Valve How They Work Tameson

Alter determining air reaches purge valve.

How to replace purge valve on air dryer. 06-05-2020 The purge valve is a replaceable service item. Install large and small o-rings on the purge valve assembly. The removable purge valve assembly incorporates the purge valve mechanism and a turbocharger cut-off feature that is designed to prevent loss of engine turbo boost pressure during the purge cycle of the Bendix.

Install the purge valve assembly 1 in the air dryer. Tighten or replace as needed then Dryer purges frequently repeat the air dryer charge-purge cycle and every 4 minutes or less observe the gauge installed in the supply. Do not force the purge piston as serious damage may be caused to the seals.

Perform tests 1 to 6 in the order presented. WASHER ECON Valve Replacement on System Saver 1200E Air Dryers To replace the Econ valve assembly on Meritor WABCO System TUBE Saver 1200E air dryers follow these instructions. For ease of maintenance all replaceable assemblies can be serviced without removal of the air dryer from.

Lubricate the purge piston bore. To raise the pressure settings turn the adjusting screw counter-clockwise. Readjust if necessary or replace governor if faulty Clean or replace line.

This give the dryer more air volume for the regeneration cycle so pressure in the wet tank wont drop below governor cut in pressure. Different dryers take different scenarios but none are hard to service. Be careful not to over adjust.

Insert new purge valve assembly in dryer housing. Install new snap ring. 27-06-2013 This purge valve would get stuck in the open position which then would not allow the system to build and hold air properly.

Can you bypass air dryer. Install air dryer or automatic drain valve. Instruction Sheets Pure Air Purge Valve Repair Kit RN60F Instructions English-Spanish.

Make certain the purge valve assembly is fully seated against the air dryer body. Sometimes you can clean them but if youre not really handy its better to either replace the bottom plate complete or just the purge valve itself. Pressure drop should not exceed 1 psi per minute.

Leaking purge valve housing assembly andor O-rings in air dryer end cover. E type compressor When installing a Bendix Drop-In air dryer in a system equipped with a Holset E or QE compressor remove the Holset ECON valve along with its feedback and governor control line. 20-05-2015 To fix it Wabco has a pressure sensing check valve that replaces the check valve on the secondary air tank.

During compressor unload the line connecting the governor unloader port to the AD-9 air dryer end cover control port is pressurized. If air is leaking from either exhaust muffler you probably have a bad purge valveRepair or replace the purge valve s. 4003882a Remove the Econ valve assembly.

To lower the pressure settings turn the adjusting screw clockwise. The initial purge and desiccant cartridge decompression lasts only a few seconds and is evidenced by an audible burst of air at the AD-IPTM air dryer exhaust. Finally the part arrived and I am happy It dose take time for it to arrive why.

Repair or replace purge valve. The air pressure causes the air dryer purge valve to open. Additionally how do you adjust a Bendix air dryer.

No purging of air should occur after 30 seconds. Above 90 PSI it is no longer a check valve so air can flow back into the wet tank. Page 43 Reconnect the lines to the Econ valve at air dryer inlet port Port 1.

With pliers pull out purge valve assembly and discard. Each 14 turn of the adjusting screw raises or lowers the pressure setting approximately 4 psi. Test with shop air at 150 PSI.

Page 18 Check Valve Feedback Line Typical Drop-In Air Dryer End Cover When installing a Bendix Drop-In air dryer in a system equipped with a Holset E or QE compressor remove the Holset ECON valve along with. 04-11-2013 removed by air flowing from the purge volume through the desiccant drying bed to the open purge valve. Turn off power to the dryerIn many makes and models both towers will pressurize.

Also Know how does an air dryer purge valve work. Remove drain cock or valve in supply reservoir wet tank and install air gauge. Air dryer purges constantly.

Secure the purge valve assembly in the air dryer using the retaining ring 5. If playback doesnt begin shortly try restarting your device. Replace purge valve cover shield and install the three hex head screws and torque to 40-55 in.

You are far away from the shops Mechanic did a very nice job save me whole. Carefully ease the purge valve assembly into position using a gentle twisting motion. If the air pressure governor does not cycle properly between 90 and 120 psi air pressure can build up until the safety valve opens.

Check governor cut-out setting.

Ad9 Universal Check Valve Kit With Install Info For Bendix Air Dryer

Image Result For Toyota Highlander Evaporative Emission Control System 2002 Diagram Car Repair Diy Emissions Toyota Highlander

Bendix Ad 1 Air Dryer User Manual Manualzz

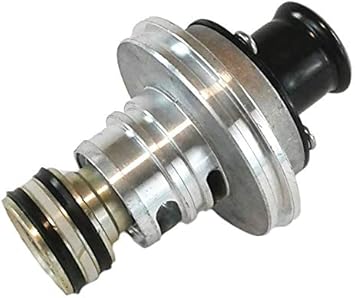

Amazon Com Cbk For Ad 9 Air Dryer Purge Valve With Heater Replaces Bendix 800405 5004341 Automotive

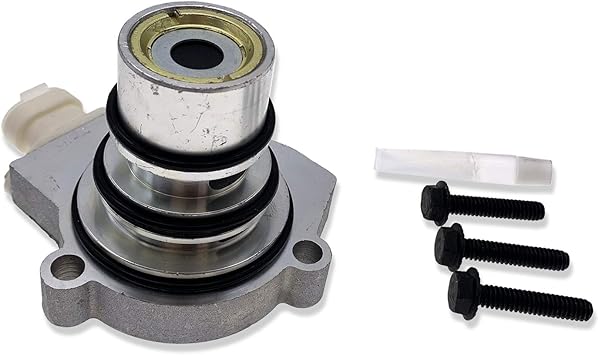

Amazon Com High Boost Purge Valve Kits With Gasket Fits For Bendix Air Dryer 12v Kenworth Peterbilt Ad Ip Ad Is Replace 801266 065612 K022105 Set Silicone Grease Automotive
